RF power amplifier modules with LNA can be used for repeaters, electronic fence and other Radio Frequency system. Sometimes it can also be referred to cellular BTS. There are a number of kinds based on different systems and functions.

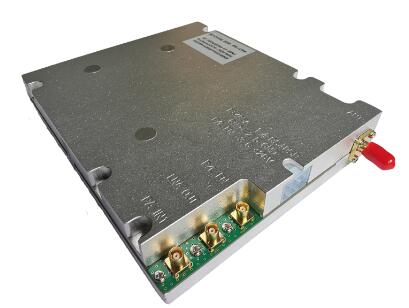

20w RF power amplifier modules with LNA.
TX | Technical Parameters |
Frequency range (MHz) | 2110-2170MHz |
Band Width (MHz) | 60MHz |
Output Power@(25℃) | 43±1dBm |
Gain | 50±1dB |
Gain Adjustable rang | ≥20dB |
Step of Gain Adjustable | ≤1dB |
Error of Gain Adjustable | Total error ≤ ±1.5dB |
ACPR | ≤-40dBc |
In Band Ripple | ≤1.5dB |
VSWR | ≤1.5 |
Out of Band Spurious | 9kHz～1GHz：≤-36dBm/30kHz 1GHz～12.75GHz：≤30dBm/30KHz |
EVM | ≤3% |
RX | Technical Parameters |
Frequency range (MHz) | 1920-1980MHz |
Gain | 25±2dB |
Gain Adjustable rang | ≥20dB |
Step of Gain Adjustable | ≤1dB |
Error of Gain Adjustable | Total error ≤ ±1.5dB |
In Band Ripple | ≤1.5dB |
Noise figure | ≤1.8dB |
VSWR | ≤1.5 |
Max. Input (no damage) | 0dBm |
OTHER SPECS | Technical Parameters |
Power Supply | +28V; ≤3.5A |
Storage Temperature | -25~+65℃ |
Humidity | 5%～95% |
Operating Temperature | -25~+55℃ |
* POWER-6 Port for Power Supply & Monitor:
PIN 1 -------- RS485A;
PIN 2 -------- RS485B;
PIN 3,4 -------- GND
PIN 5 -------- NC;
PIN 6 -------- DC+28V.

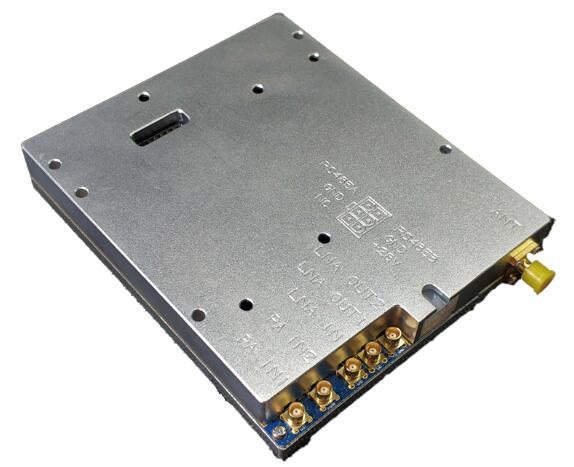

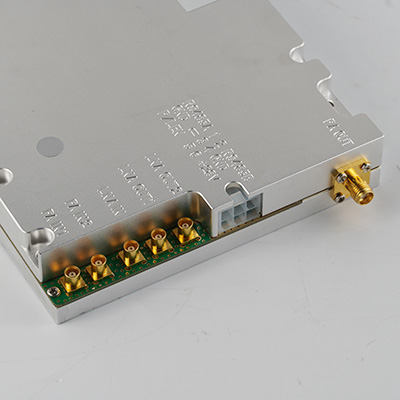

* RF Connectors:
1 Connector of SMA-50KFD for PA OUT Port
5 Connectors of MCX for PA IN & LNA OUT&LNA IN
* Monitoring for downlink PA and uplink LNA with Baud rate9600.
1) LNA Monitoring Part.
Setup module address(default=0),
Setup LNA Enable, ATT.
2) PA Monitoring Part .
Setup module address(default=0), on/off, ATT, ALC.
Query function: Working status(Overpower, Overtemperature, VSWR, ATT), Alarm (over Temperature, over power, VSWR, PA Fault);
3) Over Temperature Alarm：Alarm threshold +85℃, meanwhile switch off PA, When Temperature lower to +65℃, switch on PA automatically.
4) Over power alarm: when output power >Po+2dB
5) PA Revers Power detection: Detect total power, Modulated signal test detection rang >20dBm, Detection accuracy<±2dBm;
6) Amplifier temperature detection: Temperature detection rang including but not limited 0℃~+85℃, Detection accuracy<±3℃;
7) VSWR detection: detection rang including but not limited 1.4～3.0. Detection accuracy: 1.3～1.7@ Load’s VSWR=1.5; / 1.5～2.51.3～1.7@ Load’s VSWR=2.0;
8) PA Forward Power detection: Detect total power, Modulated signal test, detection rang >20dBm, Detection accuracy<±2dBm;
