10w RF Tetra480Mhz power amplifier module has got high lelvel of IM3 specs and wide bandwidth of 62Mhz. It is suitable for manufacturing TETRA repeaters with high quality.

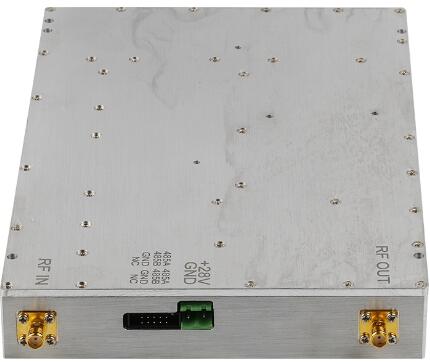

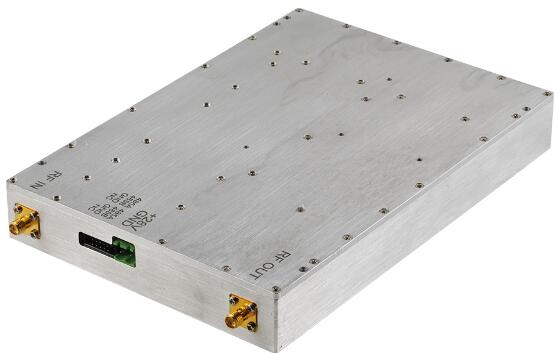

TETRA450-512MHz 10W Power Amplifier Module
Items | Technical Parameters |
Frequency rang(MHz) | 450-512MHz |
Band Width (MHz) | 62MHz |
Output Power(max.) | 40±1dBm |
ALC | ≥10dB |
Gain(max.) | 50±2dB |
Gain Adjustable rang | ≥25dB |
Step of Gain Adjustable | ≤1dB |
Error of Gain Adjustable | Total error ≤ ±1.5dB |
Input power (max.) | +10dBm |
In Band Ripple | ≤2.0dB |
VSWR | ≤1.3:1 |
IMD3 | ≤-13dBm @2x 37dBm |
Power Supply | +28V; ≤4.0A |
Operating Temperature | -25~+65℃(>85℃ Alarm & OFF, <65℃ ON) |
Humidity | 5%～95% |

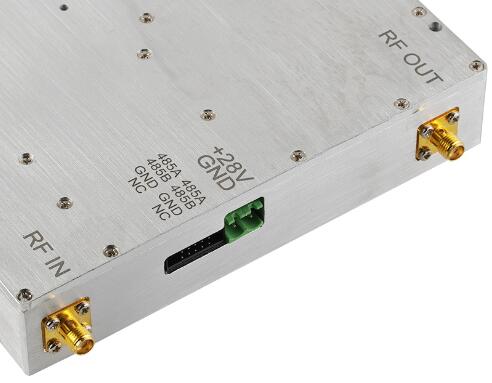

* 4W2 Port for Power Supply& Monitor, Pin definition:
A1 ——------------>DC+28V;
A2 ---------------—>GND;
PIN 1 ——--------->RS485A;
PIN 2 ——--------->RS485B;
PIN 3 ——--------->GND;
PIN 4 —---------—>NC;
* RF Connector: SMA-50KFD
* RS485 PORT:
1) PA setup function: Module address(default=0), PA=ON/OFF, ALC, ATT;
2) PA Query function: Working status(on/off, Revers power, forward power Temperature, VSWR,ALC, ATT,）, Alarm(over Temperature, over power, VSWR, PA Fault);
3) Over Temperature Alarm：Alarm threshold +85℃, meanwhile switch off PA, When Temperature lower to +65℃, switch on PA automatically.
4) Over power alarm: when output power >Po+2dB
5) Amplifier temperature detection: Temperature detection rang including but not limited 0℃~+85℃, Detection accuracy<±3℃;
6) PA Fault Alarm: Low gain Alarm;
7) PA Forward Power detection: Detect total power, Modulated signal test, detection rang >20dBm, Detection accuracy<±2dBm;
