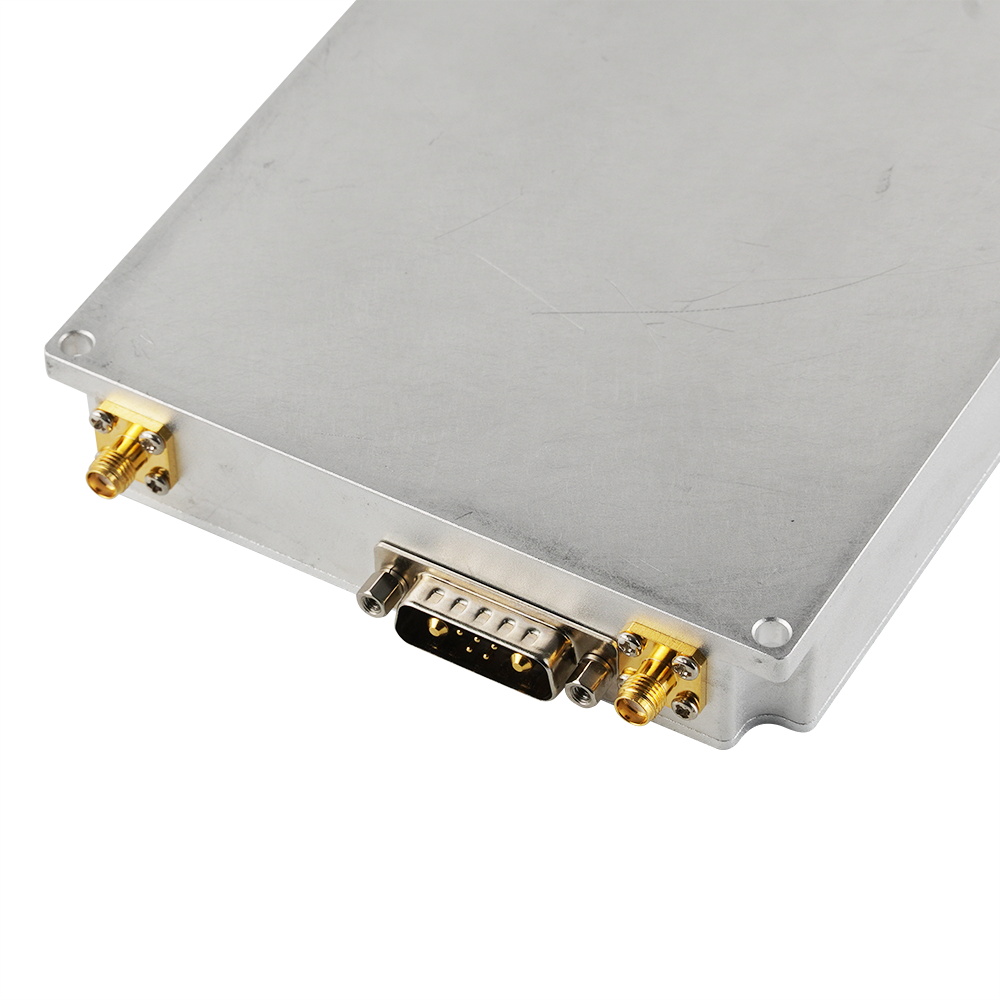

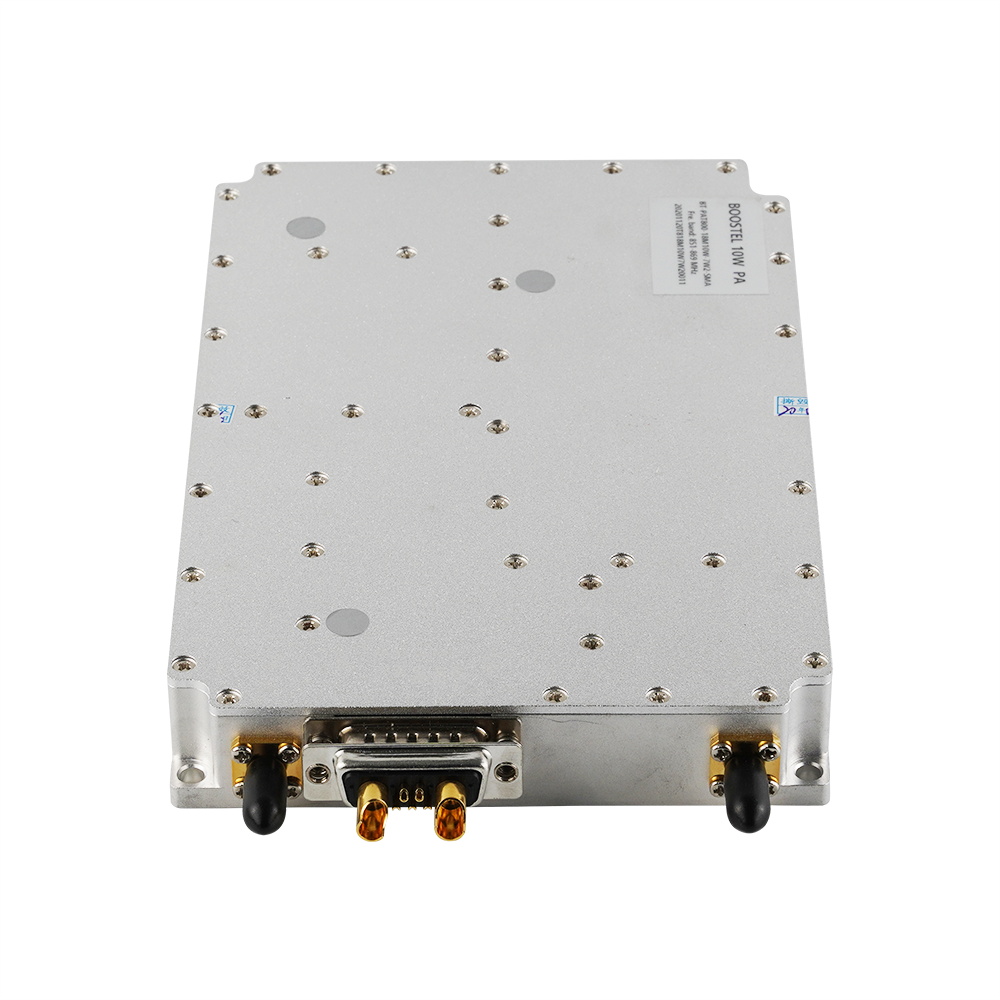

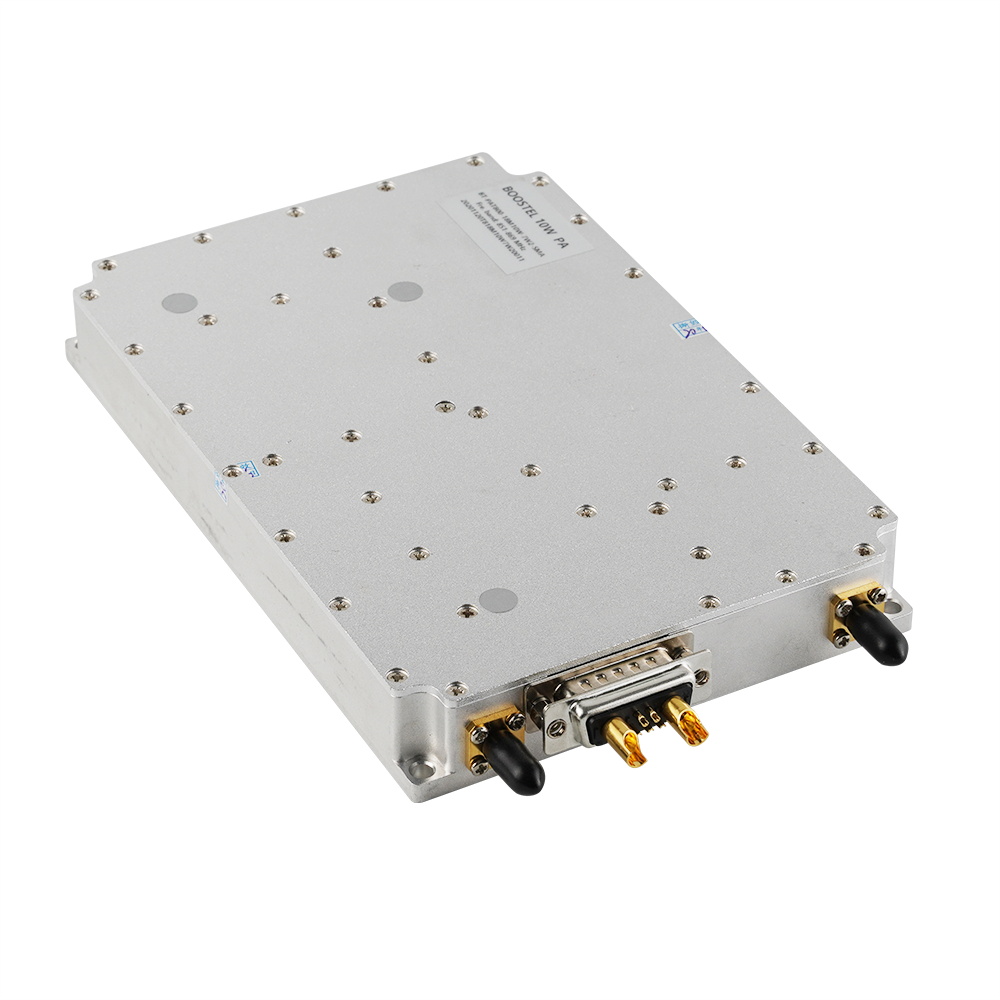

10w Tetra700Mhz power amplifier module
TETRA758-776MHz 10W Power Amplifier Module
Items | Technical Parameters |
Frequency rang(MHz) | 758-776MHz |
Band Width(MHz) | 18MHz |
Output Power@（25℃） | 40±1dBm |
P1 Max. Output power | ≥50dBm |
ALC | Output Power keep Max.Output Power±1.5dB @(20dB>Input signal increased>10dB) |
Gain（25℃） | 50±1dB |
Gain Adjustable rang | ≥20dB |
Step of Gain Adjustable | ≤1dB |
Error of Gain Adjustable | Total error ≤ ±1.5dB |
IMD3 | ≤-53dBc(@2x37dBm, 2 Tone Interval 600KNz) |
In Band Ripple | ≤1.5dB |
VSWR | ≤1.5 |
Out of Band Spurious | 9kHz～1GHz：≤-36dBm/30kHz 1GHz～12.75GHz：≤30dBm/30KHz |
Max. Input Power Without Damage | +10dBm |
Power Supply | +28V; ≤2.8A |
Storage Temperature | -25~+65℃ |
Humidity | 5%～95% |
Operating Temperature | -25~+55℃ |
* 7W2 Port for Power Supply& Monitor, Pin definition:
A1 ——------->DC+28V;
A2 -----------—>GND;
PIN 1 ——----->RS485A;
PIN 2 ——----->RS485B;
PIN 3 ——--------->GND;
PIN 4,5 —------—>NC;
* RF Connector: SMA-50KFD
* Monitoring Functions
1) PA setup function: Module address(default=0), PA=ON/OFF, ALC, ATT;
2) PA Query function: Working status(on/off, Revers power, forward power Temperature, VSWR,ALC, ATT,）, Alarm(over Temperature, over power, VSWR, PA Fault);
3) Over Temperature Alarm：Alarm threshold +85℃, meanwhile switch off PA, When Temperature lower to +65℃, switch on PA automatically.
4) Over power alarm: when output power >Po+2dB
5) PA Revers Power detection: Detect total power, Modulated signal test detection rang >20dBm, Detection accuracy<±2dBm;
6) Amplifier temperature detection: Temperature detection rang including but not limited 0℃~+85℃, Detection accuracy<±3℃;
7) VSWR detection: detection rang including but not limited 1.4～3.0. Detection accuracy: 1.3～1.7@ Load’s VSWR=1.5; / 1.5～2.51.3～1.7@ Load’s VSWR=2.0;
8) PA Fault Alarm: Low gain Alarm;
9) PA Forward Power detection: Detect total power, Modulated signal test, detection rang >20dBm, Detection accuracy<±2dBm;
