FDD LTE 1800MHz 20W PA Module with LNA
Model: CT-PL1800M-43-50N4
RF Power Amplifier module for electronic fence and repeaters
Product Details
* POWER-6 Port for Power Supply & Monitor:
PIN 1 -------- RS485A;
PIN 2 -------- RS485B;
PIN 3,4 -------- GND
PIN 5 -------- NC;
PIN 6 -------- DC+28V.

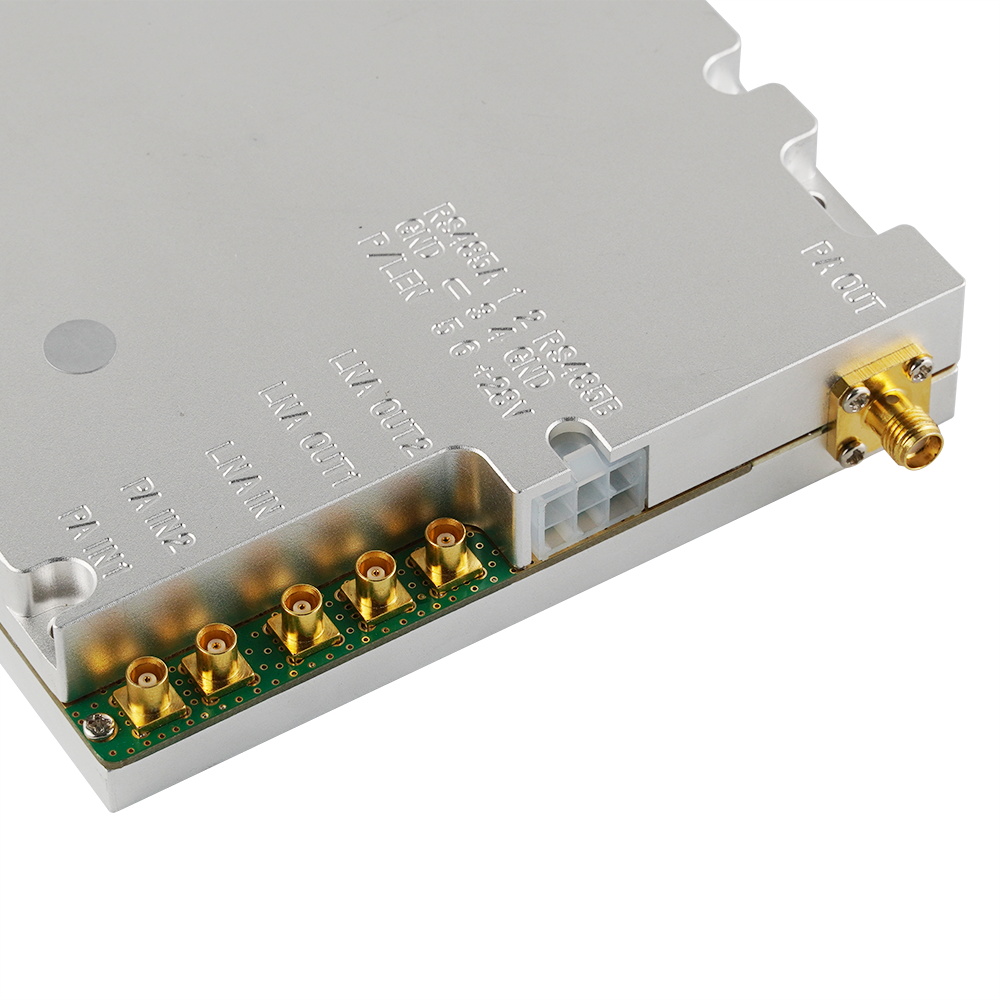

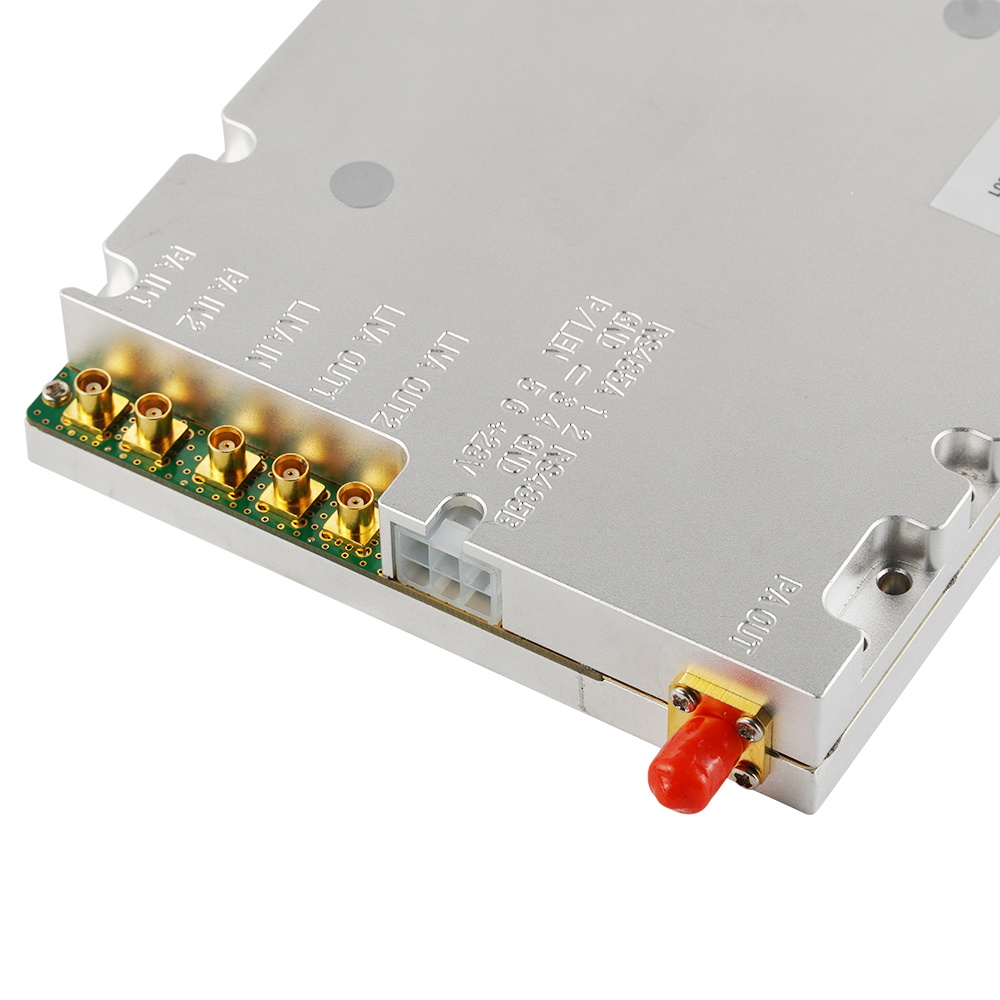

* RF Connectors:
1 Connector of SMA-50KFD for PA OUT Port
5 Connectors of MCX for PA IN & LNA OUT&LNA IN
