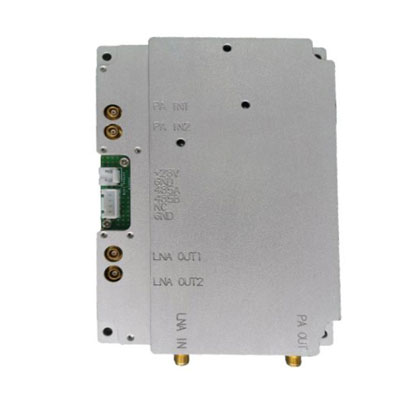

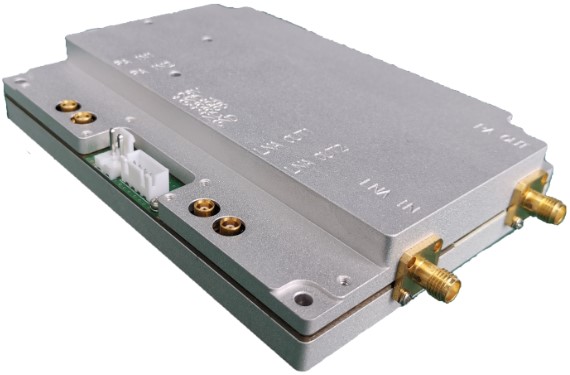

FDD LTE 900MHz 10W PA Module with LNA
Model: CT-PL900M-40-45N1
10w RF power amplifier module for electronic fence system and repeaters
Product Details
* VH3.96-2A Port for Power Supply:
PIN 1 -------- DC+28V
PIN 2 -------- GND
* XH2.54-4A Port for Monitor:
PIN 1 -------- RS485A;
PIN 2 -------- RS485B;
PIN 3 -------- NC;
PIN 4 -------- GND.
* RF Connectors:
2 (4) Connectors of MCX for PA IN & LNA OUT
2 Connectors of SMA-50KFD for PA OUT & LNA IN
