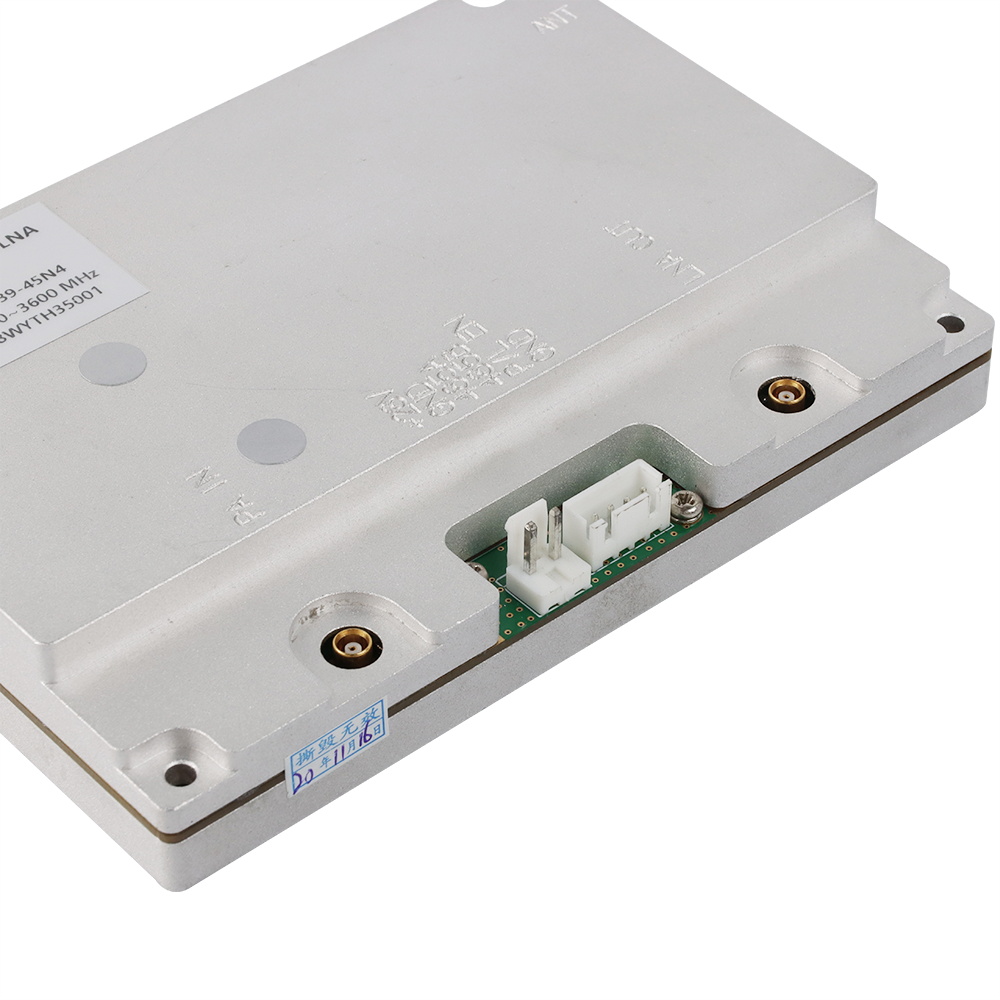

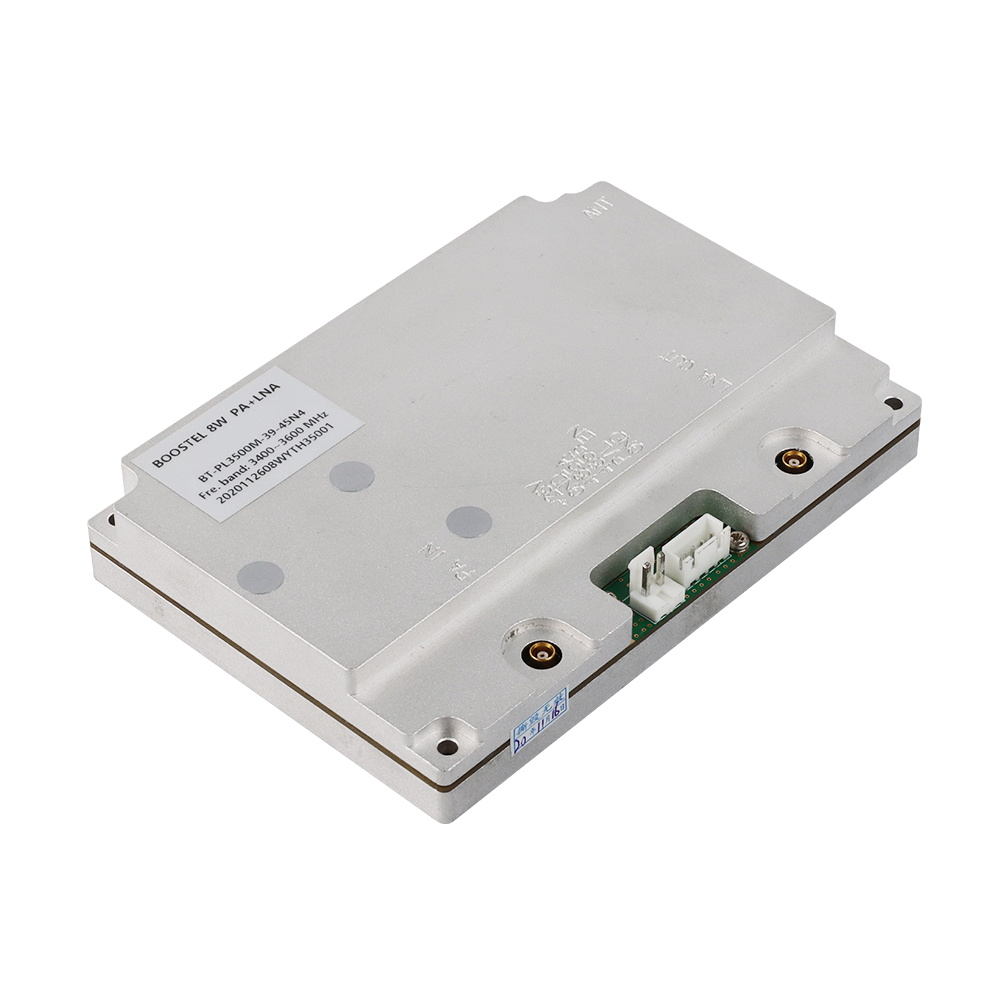

TDD LTE 3500MHz 8W PA Module with LNA
Model: CT-PL3500M-39-45N2
8W TDD Power amplifier module with LNA for electronic fence system and repeaters.
Product Details
* VH3.96-2A Port for Power Supply:
PIN 1 -------- DC+28V
PIN 2 -------- GND
* XH2.54-4A Port for Monitor:
PIN 1 -------- RS485A;
PIN 2 -------- RS485B;
PIN 3 -------- Timing switch, High level enable PA, Low level enable LNA.
PIN 4 -------- GND.

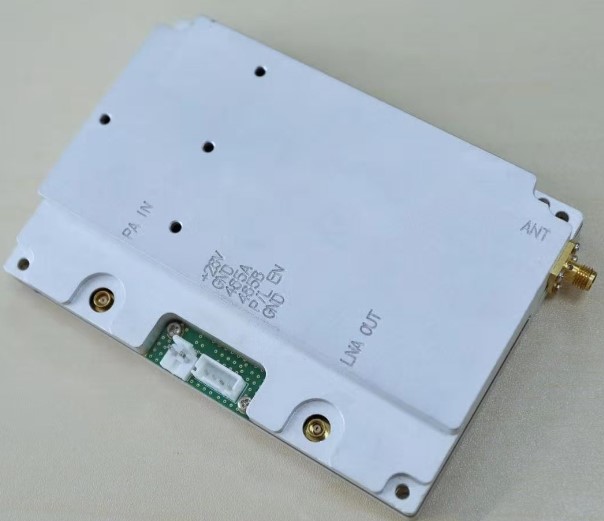

* RF Connectors:
2 Connectors of MCX for PA IN & LNA OUT
1 Connectors of SMA-50KFD for ANT
