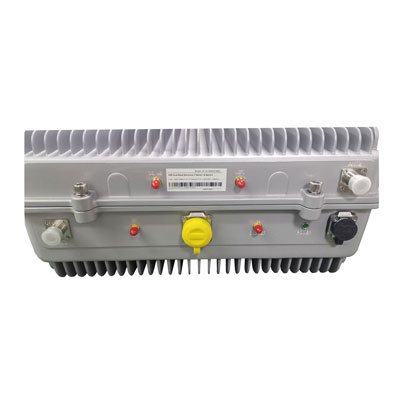

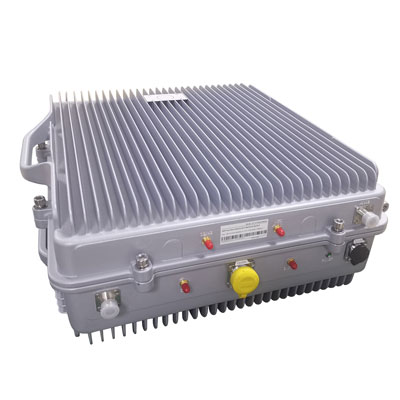

The Fiber Optic Electronic Fence (EF) is designed to solve problems of Security in the places there crowd people and easy to be attacked via IMSI alarm.
Product Introduction:
The Fiber Optic Electronic Fence (EF) is designed to solve problems of Security in the places there crowd people and easy to be attacked via IMSI alarm.

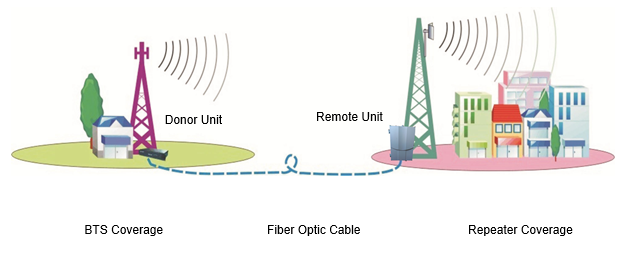

The system consists of two parts: Master Unit(MU) and Remote Unit(RU). The MU generate signal and send it to RUs via fiber optic cables to cover the whole area such as University, School, Hospital, Kids garden, Village and Campus. Once an IMSI which is not in the white list of the area come inside, the system will send alarm to administrator or guards of security offices.
Product Features:
1*B1(1920-1980MHz/2110-2170MHz)
1*B3(1710-1785MHz/1805-1880MHz
1*B5(821-835MHz/866-880MHz)
1*B7(2500-2570MHz/2620-2690MHz)
RF Connector: 3*NF
Optical output power:40±2dBm(DL)
Power Supply: AC220V
Application: Outdoor(IP65)
Dimensions: 447mm X 357mm X231mm
Weight: 25kg
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Outdoor : Airports ,tourism regions, golf courses, tunnels, mining districts, villages,…
Indoor: Hotels, exhibition centers, hospitals, shopping malls, offices, schools,…
Item | Specifications | |
System | 2G/3G/4G | |
Working Frequency Bands | B2, B4, B5, B7, B28, B38, B66... | |
Gain(MU) | 0±3dB | |
MU Support RUs | 4 units (Distance of MU to RUs 0.1~20km) | |
Ripple In Band | ≤6dB@Band3, ≤4dB@Band1 | |
RF Output Power(Composite RF) | -10±2dBm(UL/DL) | |
ACLR(Band1) | ≥ 45dBc/5MHz | |
≥ 50dBc/10MHz | ||
Spurious Emission | ≤-36dBm/9KHz-1GHz | |
≤ -30dBm/1GHz-12.75GHz | ||
VSWR | ≤1.5 | |
Max. Input Power (Non-destructive) | Uplink | -10dBm |
Downlink | 10dBm | |
Fiber Type/Number | Single mode | |
Optical Output Power | 0±3dBm@1310nm/-3±3dBm@1550nm | |
Optical Wavelength | 1310nm/1550nm | |
Optical Connector Type | 4ports of FC/APC | |
RF Connector Type | 2 * N-Female | |
I/O Impedance | 50Ω | |
Ingress Protection | IP40 for Indoor | |
Operating Temperature | -10℃~55℃ | |
Relative Humidity | ≤95% | |
Dimensions | 485×90×960mm / 500x 440 x 235mm | |
Weight | ≤25/35Kg | |
Mounting | Rack Mounting / Wall Mounted | |
Power Supply | DC-48V/AC220 | |
Power Consumption | ≤200W | |
Local Monitoring Interface | RJ45 | |
Remote Monitoring | Ethernet/LAN(IP Connectivity Via RJ45) | |
NMS Mode | Wireless Modem (Via SMS) | |
NMS Monitoring Function | Real-time alarm for door status, temp., power supply, VSWR, etc; Remote control on/off, increasing/decreasing output power, etc; Real-time output/input power, UL/DL gain, etc. | |
