Six Band Combiners

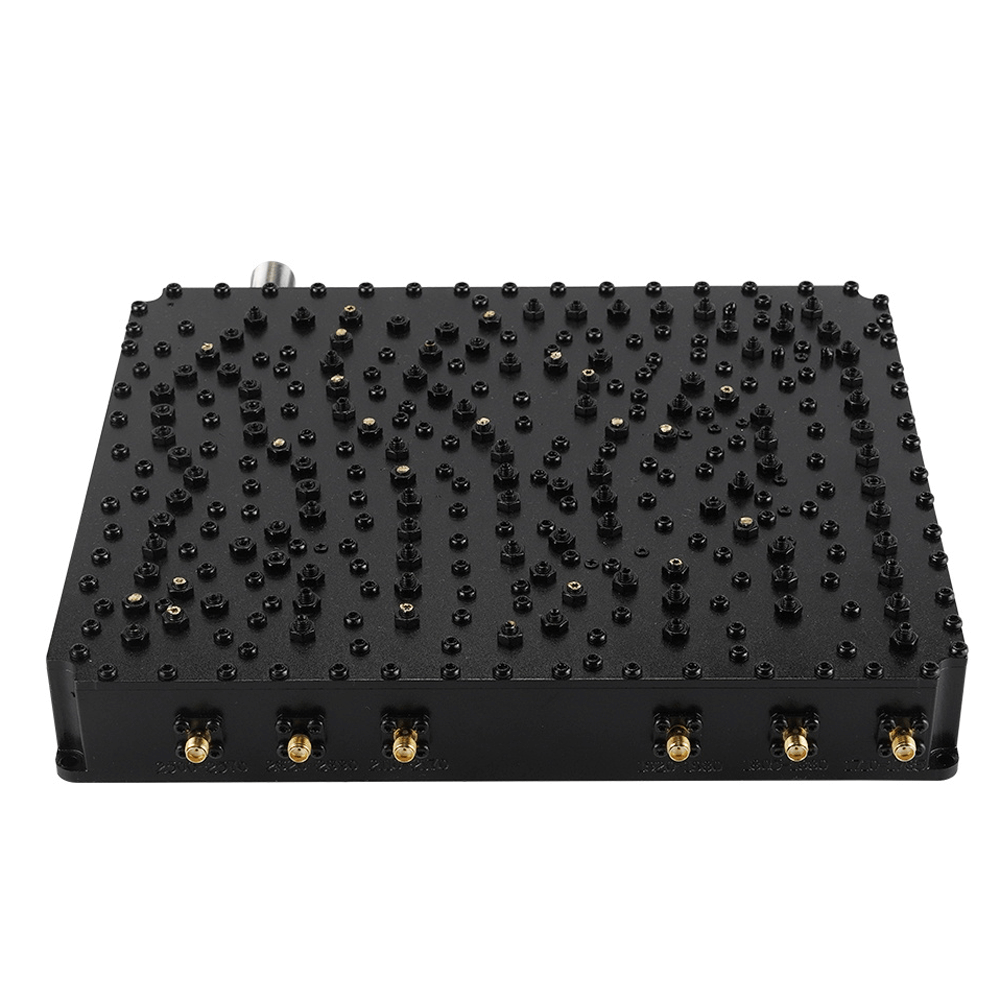

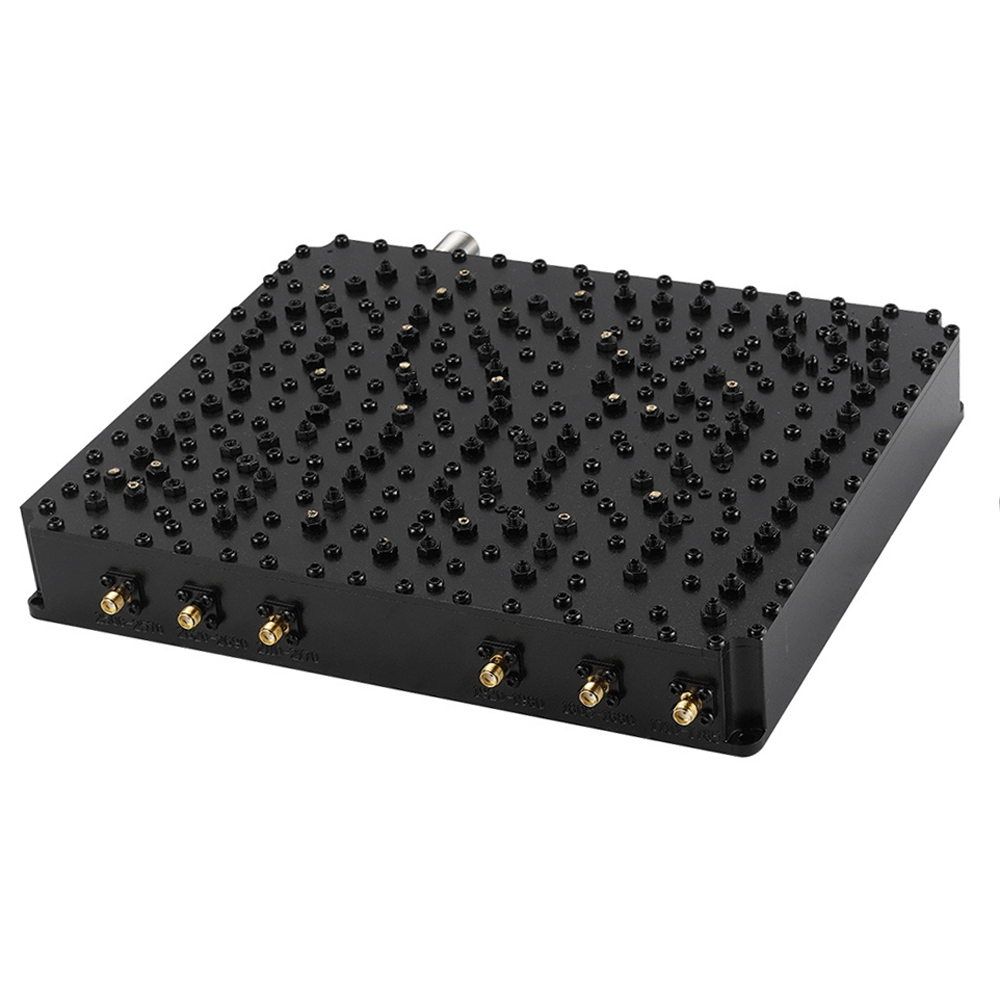

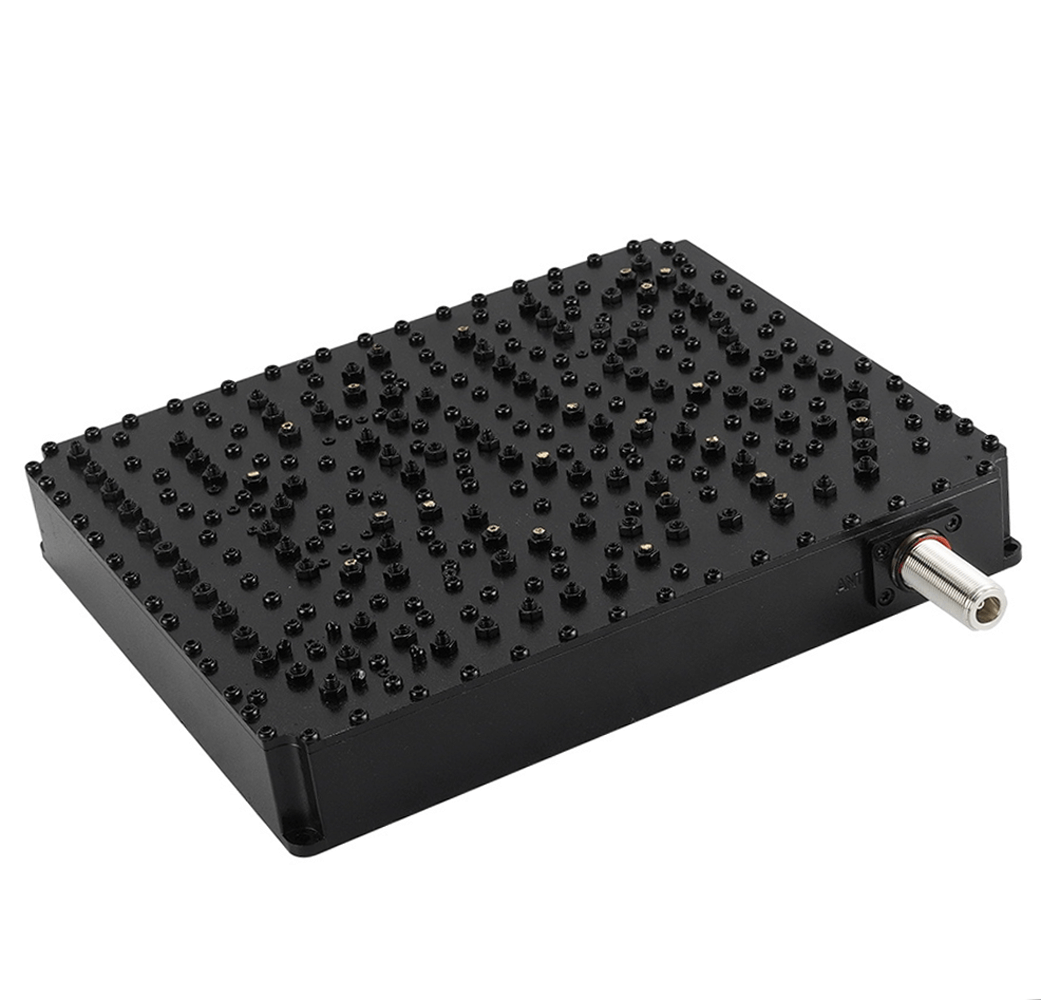

Model: BT-0506011727SMA-NF
Six-band combiner with six bands and one ANT port. It combines and separates different frequency components, and the effective design of the combiner is a key issue in achieving compatibility across multiple networks.
Product Details
Product Introduction:
Six-band combiner with six bands and one ANT port. It combines and separates different frequency components, and the effective design of the combiner is a key issue in achieving compatibility across multiple networks.
Technical Specifications:
NO | Item | Technical Specifications | |||||
ANT1 | |||||||
B3RX | B2RX | B2TX | B1TX | B7RX | B7TX | ||
1 | Freq. Band（MHz） | 1710-1780 | 1850-1910 | 1930-1990 | 2110-2200 | 2500-2570 | 2620-2690 |
2 | Bandwidth（MHz） | 70 | 60 | 60 | 100 | 70 | 70 |
3 | Insertion loss（dB） | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.2 | ≤1.2 | ≤1.2 |
4 | In band ripple（dB） | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
5 | Isolation（dB） | ≥90dB； | |||||
6 | VSWR | ≤1.3 | |||||
7 | Power（W） | ≤100W/port | |||||
8 | Operation Temp. | -10℃～+60℃ | |||||
9 | Connectors | ANT/4.3-10-KFD , Input/SMA-Female，50Ω | |||||
10 | Dimensions（mm） | 255*165*40（L*W*H） | |||||
11 | Color | Black | |||||
