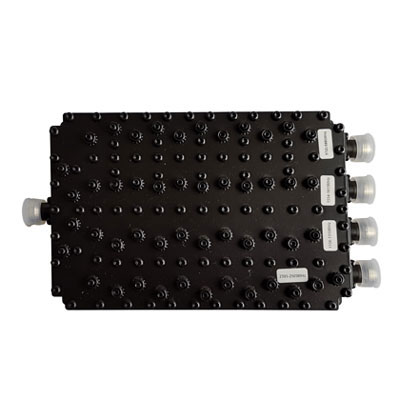

Quad Band Combiners
Model: BT-0504011258-NF
This is a heterodyne combiner, the 4-in/1-out design allows this quad-band combiner to effectively integrate multiple heterodyne signals and output the heterodyne signal on the same port, making the combiner suitable for indoor use.
Product Details
Specifications:
Part No. | BT-0504011258-NF | |
Frequency range (MHz) | Port1 | 1156-1310 |
Port2 | 1554-1615 | |
Port3 | 2395-2505 | |
Port4 | 5720-5880 | |
Insertion loss(dB) | ≤0.3 | |
Isolation(dB) | ≥60 | |
Return loss/VSWR | ≤-18dB/1.3 | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤50 W(avg.) | |
Operation temperature | -20°C to +65 °C | |
Storage temperature | -40 °C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Indoor | |
Connectors | N-F | |
Weight | 1.5kg | |
Dimensions(mm) | 180*138*26(without connectors) | |

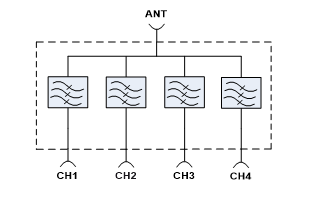

Schematic diagram:

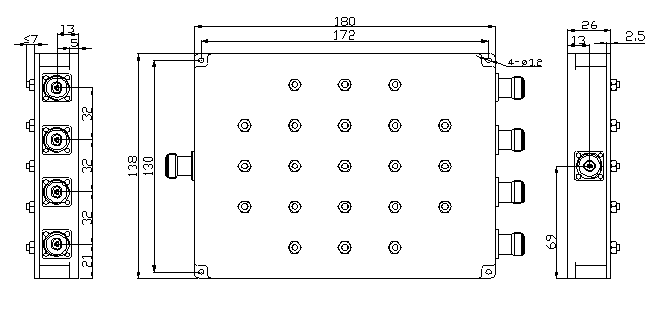

Outline drawing:
