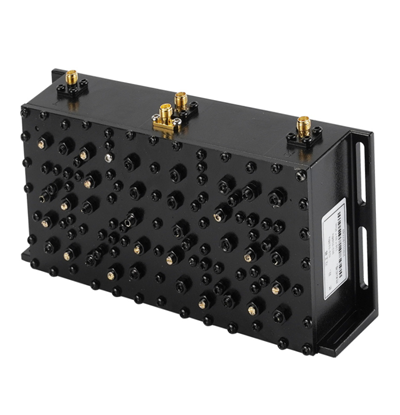

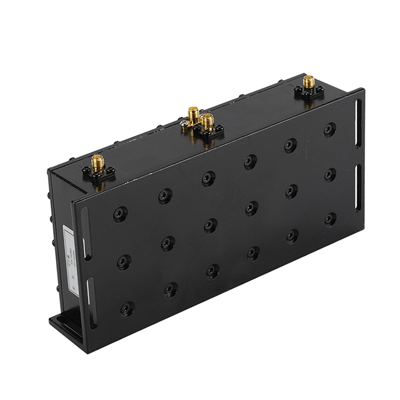

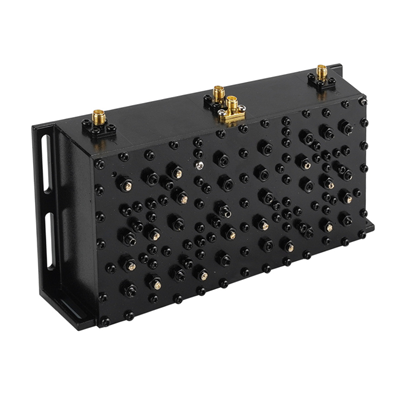

Duplexer is the main accessory of heterodyne duplex radios and repeaters. Its function is to isolate the transmitting and receiving signals to ensure that both receiving and transmitting can work properly at the same time. It is composed of two sets of bandstop filters of different frequencies to avoid the transmission of the local transmit signal to the receiver.
Product Introduction:
Duplexer is the main accessory of heterodyne duplex radios and repeaters. Its function is to isolate the transmitting and receiving signals to ensure that both receiving and transmitting can work properly at the same time.
It is composed of two sets of bandstop filters of different frequencies to avoid the transmission of the local transmit signal to the receiver.
Technical Specifications:
Type | Cavity Duplexer | |
Port | RX | TX |
Operating Frequency | 880-915 MHz | 925-960 MHz |
Insertion Loss | ≤1.0 dB | ≤1.0 dB |
In-Band Ripple | ≤0.5 dB | ≤0.5 dB |
Rejection | ≥50 dB | |
Isolation between UL&DL | ≥90 dB | |
Return Loss | ≥20dB | |
Connector Type | SMA Female | |
Power Handling | 80W | |
Application | Indoor | |
Impedance | 50 Ω | |
Operating Temperature | -15°C to +60°C | |
Dimension | 192x88x38mm | |
Color | Gray/black | |
Schematic diagram:
