Product Introduction

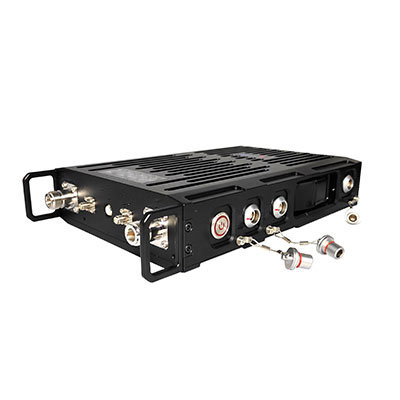

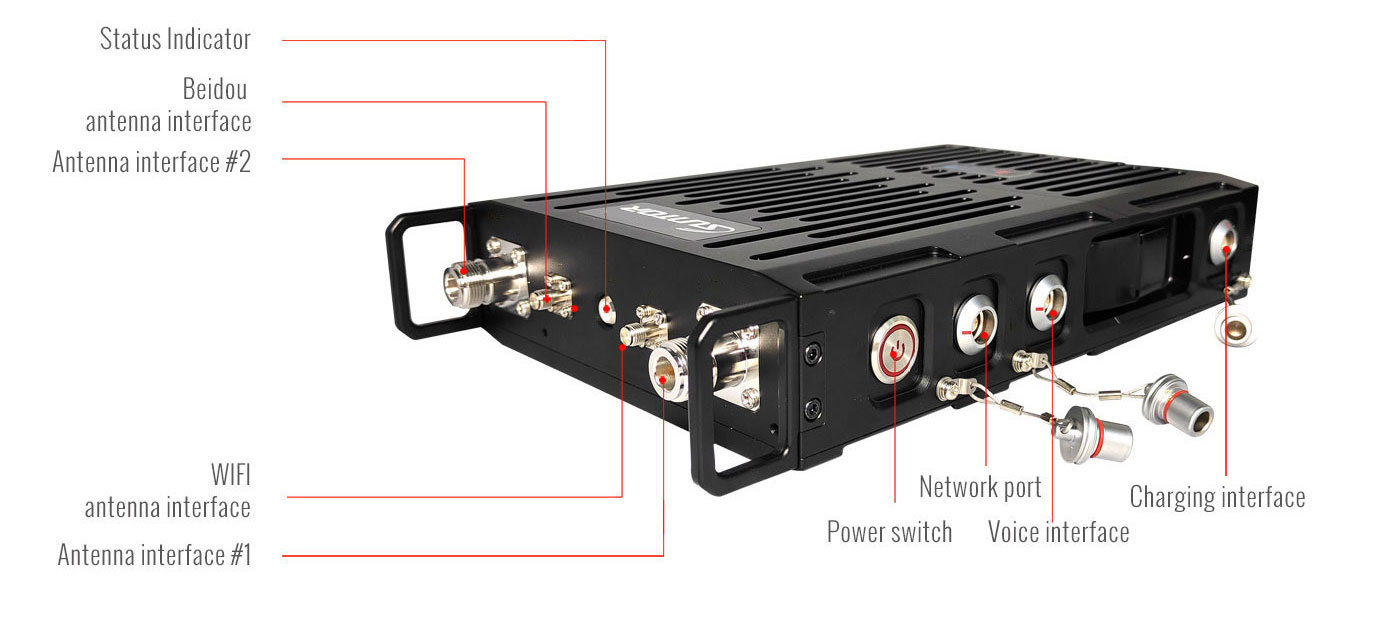

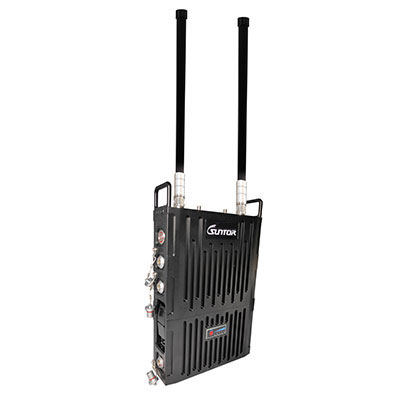

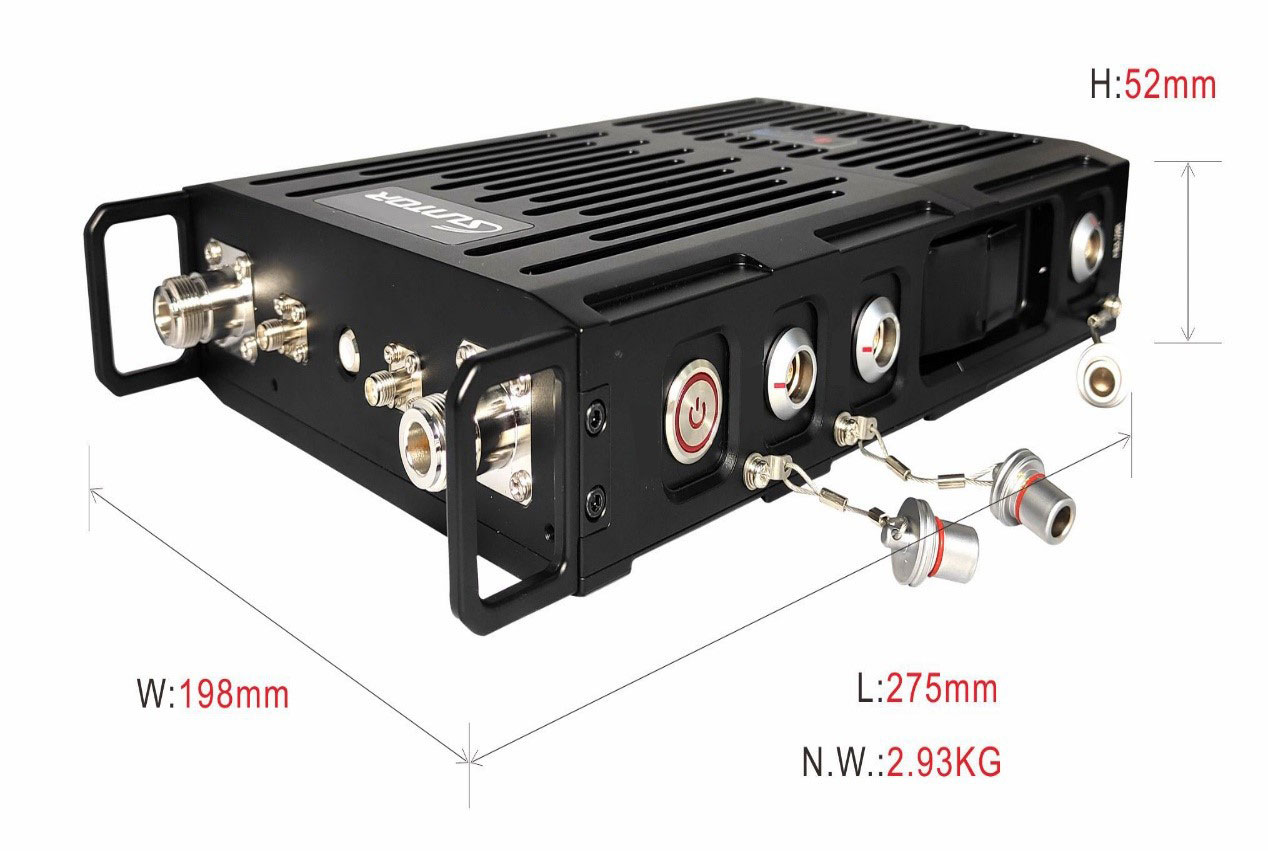

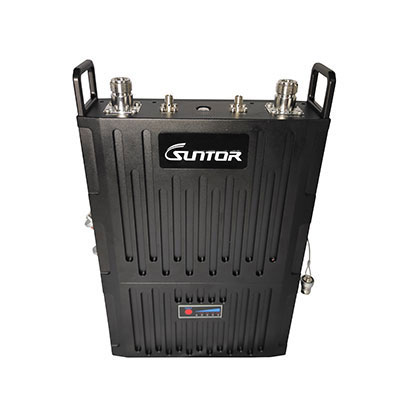

Individual soldier mesh network transmission device,with small size, light weight, equipped with high-capacity removable batteries, easy to carry on the back of individual soldiers, fully liberating hands. Fast network access, automatic multi-hop relay, can provide voice group call, video backhaul, relay transmission and other multimedia communication services for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. With Beidou positioning function, but also support WiFi coverage, can cooperate with wifi function intelligent terminal for various communications.  The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology. It can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.  The transmission distance can reach more than 10km in the open environment on the ground, 300~1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.

Product Features

• Centerless, distributed network architecture design, each node in the network architecture, i.e., it is both the gateway (Gateway), routing (Router), client (Client) and relay;

• Supports any network topology: wireless mesh network, chain network, star network and hybrid wireless networking;

• Supports non-line-of-sight transmission, multi-hop relay relay forwarding;

• Wide coverage, ground without blocking environment, transmission distance: ≥10km, air to ground ≥60km, blocking environment, 500~2000m (depending on the blocking environment);

• High transmission bandwidth: peak rate not less than 52Mbps, not less than 95Mbps in MIMO mode (optional);

• Low transmission delay, single hop unidirectional ≤ 7ms;

• Supports bi-directional IP network data transmission;

• Support PTT two-way voice intercom function;

• Support wifi signal coverage;

• Wide frequency range, 300~3000MHz (within the range can be customized according to the needs of guests);

• Support 1.25/2.5/5/10/20MHz bandwidth (MIMO version 40MHz bandwidth can be selected);

• Networking nodes: 16 nodes, 32 nodes, 128 nodes, 256 nodes (choose different configurations as needed);

• Battery design adopts split quick snap-on design, which is convenient for quick battery replacement on site;

• The device supports fast mobile transmission with a maximum speed of up to Mach 2.5;




Application

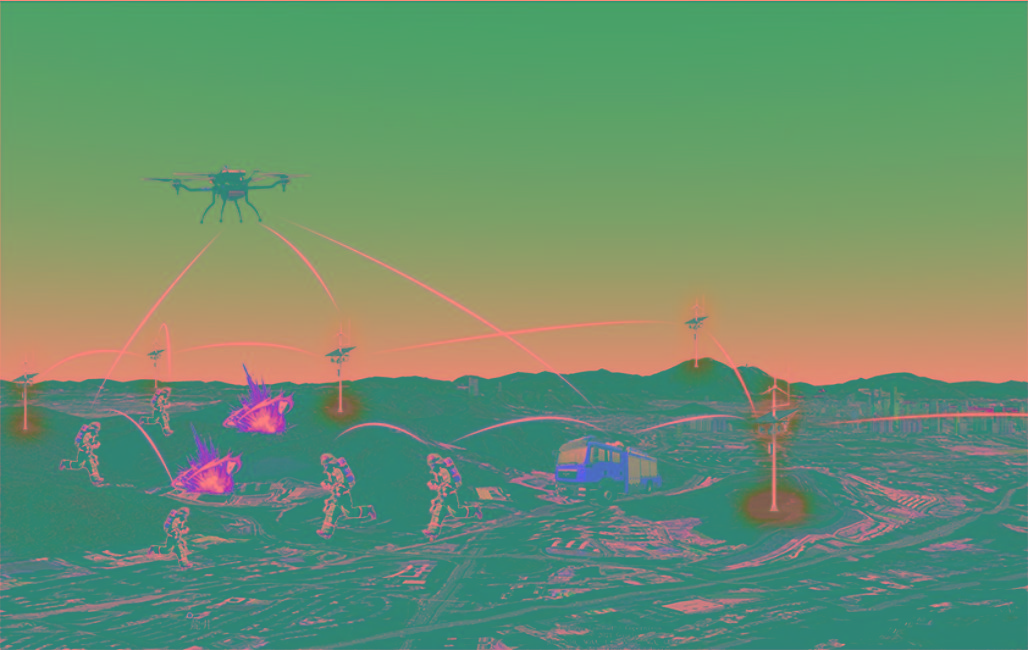

Backpack Individual Mesh Network radio, for emergency response, anti-terrorism and riot control, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" missions to provide the first time wireless broadband communications.

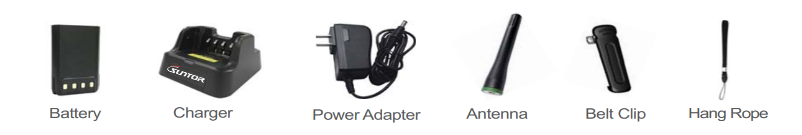

Accessories
